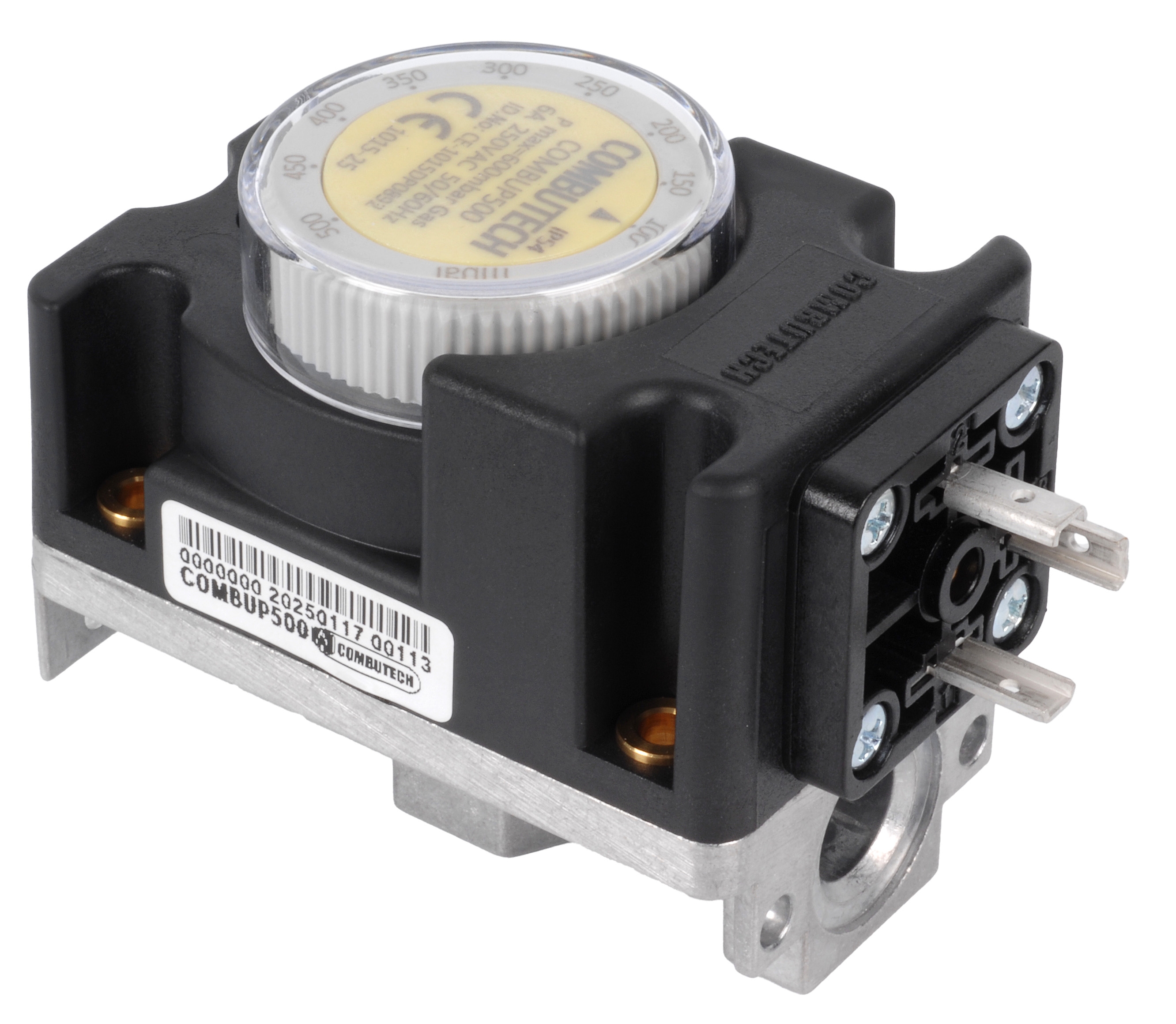

Combutech Pressure switch COMBUP50 5-50 mbar
Combutech COMBUP50 is a combustion pressure switch designed for burner and heating system monitoring within the 5-50 mbar range. It features IP54 protection and 1/4" female thread process connection, fitting…
SKU 3G-CBM-01179
Also listed as: COMBUP 50 · COMBUP-50
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
Combutech COMBUP50 is a combustion pressure switch designed for burner and heating system monitoring within the 5-50 mbar range. It features IP54 protection and 1/4" female thread process connection, fitting industrial combustion control applications requiring ±15% allowable deviation.
Frequently Asked Questions
What is the Combutech COMBUP50 pressure switch used for?
The Combutech COMBUP50 is a compact pressure switch designed to monitor air or gas pressure in gas-fired equipment and systems, such as burners. It can be configured as a minimum or maximum pressure switch and is compatible with gases of families 1, 2, and 3, as well as non-corrosive neutral gases.
What are the specifications of the Combutech COMBUP50?
The Combutech COMBUP50 has a pressure range of 5-50 mbar, a 1/4" female thread process connection, and an allowable deviation of ±15%. It features IP54 protection, a 3-pin DIN-EN 175 301-803 electrical connection, and a cast aluminum body with an HNBR diaphragm. The switching contact is Ag-SnO2, and the setpoint is adjustable via a rotary graduated knob.
Where to buy the Combutech COMBUP50 in Singapore?
3G Electric supplies the Combutech COMBUP50 pressure switch to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility, providing technical support for combustion applications. Contact us for availability and lead time on this model.
How to install the Combutech COMBUP50 pressure switch?
Install the Combutech COMBUP50 with the diaphragm in a vertical position for accurate pressure point adjustment. Use the 1/4" female thread connection and ensure the electrical connection via the 3-pin DIN-EN 175 301-803 connector is secure. The compact size allows easy installation in confined spaces, and the setpoint is adjusted using the rotary graduated knob.
