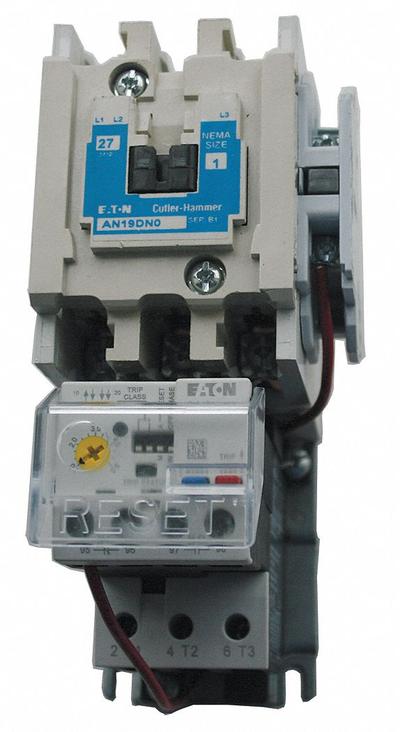

EATON Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A - Non-Reversing Starters with Electronic Overloads
EATONNon-Reversing Starters with Electronic Overloads

EATON Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, three poles, NEMA Size 1, and a 27 A rating. It features a 208V AC coil, a 1NO auxiliary contact, and a pilot light for…

SKU 3G-OTH-42294

Brand
EATON
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AN19DN0E5E045
Type
NEMA Size 1, 27 A
Phase
Three
Poles
3
AC Coil
208V
Operator
None
Coil Voltage
208V AC
Operator Controls
None
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, three poles, NEMA Size 1, and a 27 A rating. It features a 208V AC coil, a 1NO auxiliary contact, and a pilot light for signaling. This three-phase starter requires no thermal units, as it uses electronic overloads.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON non-reversing starters with electronic overloads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
