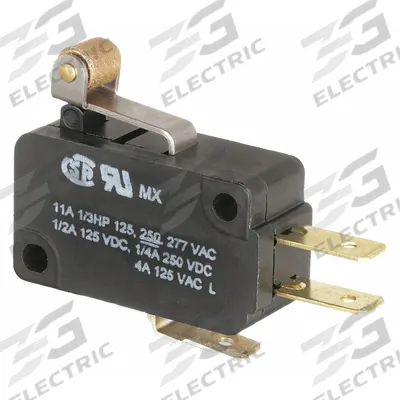

Honeywell Miniature Snap Action Switch: Roller Lever Actuator, 1NO/1NC - Roller-Lever Snap-Action Switches
HoneywellRoller-Lever Snap-Action Switches

Honeywell Miniature Snap Action Switch: Roller Lever Actuator, 1NO/1NC

The HONEYWELL Miniature Snap Action Switch with Roller Lever Actuator (MPN V7-2B17D8-201) is a V7 Series roller-lever snap-action switch featuring a 1NO/1NC contact configuration. It has an AC contact rating of 11 A…

SKU 3G-OTH-38150

Brand
Honeywell
Item
Miniature Snap Action Switch: Roller Lever Actuator, 1NO/1NC
Category
Roller-Lever Snap-Action Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
V7-2B17D8-201
Series
V7
Type
1NO/1NC, Quick Connect
AC Contact Rating
11 A @ 125 V
Electrical Connection
Quick Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HONEYWELL Miniature Snap Action Switch with Roller Lever Actuator (MPN V7-2B17D8-201) is a V7 Series roller-lever snap-action switch featuring a 1NO/1NC contact configuration. It has an AC contact rating of 11 A @ 125 V and uses a Quick Connect electrical connection.

Frequently Asked Questions

What is the Honeywell V7-2B17D8-201 miniature snap action switch used for?

The Honeywell V7-2B17D8-201 is a roller-lever snap action switch used in industrial automation, HVAC equipment, and vending machines to detect position or limit motion. Its 1NO/1NC contacts and 11 A @ 125 V rating make it suitable for control circuits and safety interlocks.

What are the specifications of the Honeywell V7-2B17D8-201 switch?

The Honeywell V7-2B17D8-201 is a V7 Series miniature snap action switch with a roller lever actuator. It has a 1NO/1NC contact configuration, an AC contact rating of 11 A @ 125 V, and a Quick Connect electrical connection. The manufacturer part number is V7-2B17D8-201.

Where to buy the Honeywell V7-2B17D8-201 switch worldwide?

You can source the Honeywell V7-2B17D8-201 switch worldwide through 3G Electric. As a global industrial distributor, 3G Electric handles full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to install a Honeywell V7 series roller lever snap action switch?

Mount the Honeywell V7 switch securely using the provided holes, ensuring the roller lever aligns with the actuating cam or mechanism. Connect wires to the Quick Connect terminals per your circuit diagram. Avoid over-travel beyond the switch's rated limit to prevent damage.
