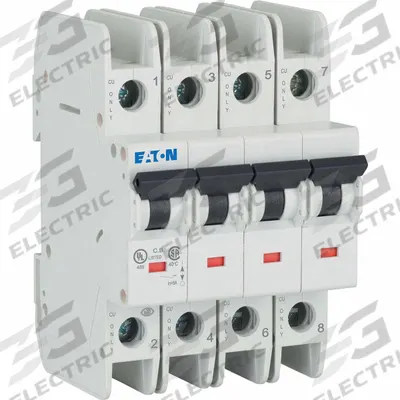

IEC Miniature Cct Breaker, 25 A - C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
IECC-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers

IEC Miniature Cct Breaker, 25 A

The IEC Miniature Cct Breaker, 25 A, 3 in (MPN FAZ-C25/4-NA) is a C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breaker from EATON. It is rated for 277/480V AC with a breaking capacity of 10 kA at 277/480V…

SKU 3G-OTH-129710

Brand
IEC
Item
Miniature Cct Breaker, 25 A
Category
C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breakers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IEC
Manufacturer Part Number
FAZ-C25/4-NA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IEC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IEC Miniature Cct Breaker, 25 A, 3 in (MPN FAZ-C25/4-NA) is a C-Curve, 4-Pole UL489 DIN Rail-Mount Miniature Circuit Breaker from EATON. It is rated for 277/480V AC with a breaking capacity of 10 kA at 277/480V AC and features screw-type terminals.

Frequently Asked Questions

What is the IEC Miniature Cct Breaker 25 A 3 in used for?

This EATON FAZ-C25/4-NA miniature circuit breaker protects branch circuits in commercial and industrial panels. Its C-Curve trip characteristic handles moderate inrush loads like motors and transformers. Rated 277/480V AC, it is suitable for North American UL489 applications requiring overcurrent protection.

What are the specifications of the IEC Miniature Cct Breaker 25 A 3 in?

The EATON FAZ-C25/4-NA is a 4-pole, C-Curve, 25 A miniature circuit breaker with a breaking capacity of 10 kA at 277/480V AC. It features screw-type terminals and mounts on a DIN rail. The product is UL489 listed for branch-circuit protection.

Where to buy the IEC Miniature Cct Breaker 25 A 3 in worldwide?

3G Electric supplies the EATON FAZ-C25/4-NA miniature circuit breaker worldwide. As a global industrial distributor, we handle full logistics, customs clearance, and delivery to your site. Contact us for availability and lead time on this UL489 4-pole breaker.

How to install the IEC Miniature Cct Breaker 25 A 3 in?

Snap the EATON FAZ-C25/4-NA onto a standard 35 mm DIN rail. Ensure the breaker is off before wiring. Connect conductors to the screw-type terminals, torquing to manufacturer specifications. Verify voltage rating (277/480V AC) and load current do not exceed 25 A per pole.

Used in

Common applications for IEC
Industrial panelboards — IEC FAZ-C series 4-pole miniature circuit breakers for branch circuit protection in 480 V AC distribution
Motor control centers — IEC FAZ-C series MCBs for overcurrent protection of motor circuits in C-curve applications
Heating equipment — IEC GFP series ground fault protectors (e.g., 25 A, 260 mA) for personnel protection in electric heaters
Pump systems — IEC GFP series (e.g., 63 A, 26 mA) for ground fault protection in industrial pump controls
Commercial building electrical rooms — IEC FAZ-C series breakers for lighting and receptacle circuits in 277/480 V AC systems
Machine tool disconnects — IEC FAZ-C series MCBs as supplementary protection in control panels for manufacturing equipment
