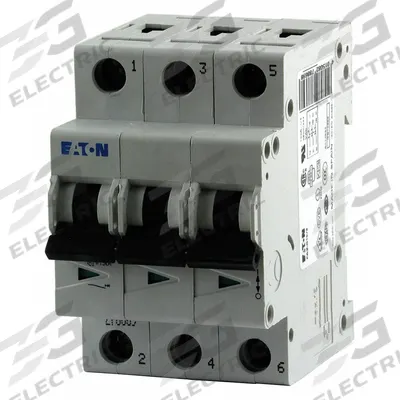

EATON Supplementary Protector: 63 A Amps, 96V DC, 10kA at 415V AC, Lug, FAZ - D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
EATOND-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors

EATON Supplementary Protector: 63 A Amps, 96V DC, 10kA at 415V AC, Lug, FAZ

The EATON FAZ-D63/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated for 63 A Amps. It features a Max. AIR Rating of 10kA at 415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating of…

SKU 3G-OTH-21084

Brand
EATON
Item
Supplementary Protector: 63 A Amps, 96V DC, 10kA at 415V AC, Lug, FAZ
Category
D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
FAZ-D63/3
Series
FAZ
Type
10kA at 415V AC, Lug, FAZ
AC
277/480V
DC
96V
Max. AIR Rating
10kA at 415V AC
AC Voltage Rating
277/480V AC
DC Voltage Rating
96V DC
Terminal Connection
Lug
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON FAZ-D63/3 is a D-Curve, 3-Pole UL1077 DIN Rail-Mount Supplementary Protector rated for 63 A Amps. It features a Max. AIR Rating of 10kA at 415V AC, AC Voltage Rating of 277/480V AC, and DC Voltage Rating of 96V DC, with Lug terminal connections.

Frequently Asked Questions

What is the EATON FAZ-D63/3 supplementary protector used for?

The EATON FAZ-D63/3 is a D-curve, 3-pole UL1077 supplementary protector rated for 63 A amps. It protects branch circuits and equipment from overcurrent and short circuits in industrial control panels, HVAC systems, and machinery, with a max AIR rating of 10kA at 415V AC.

What are the specifications of the EATON FAZ-D63/3?

The EATON FAZ-D63/3 has a 63 A amp rating, AC voltage rating of 277/480V AC, DC voltage rating of 96V DC, and a max AIR rating of 10kA at 415V AC. It features lug terminal connections, a D-curve trip characteristic, and is part of the FAZ series for DIN rail mounting.

Where to buy the EATON FAZ-D63/3 worldwide?

You can source the EATON FAZ-D63/3 through 3G Electric, a global industrial equipment distributor established in 1990. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring reliable supply of this FAZ series supplementary protector for your projects.

How to install the EATON FAZ-D63/3 supplementary protector?

Install the EATON FAZ-D63/3 on a standard DIN rail by snapping it into place. Ensure the circuit is de-energized, connect wires to the lug terminals per the torque specifications in the manual, and verify the D-curve setting matches your load's inrush current. Always follow local electrical codes.
