IFM Pressure Transmitter: 0 psi to 15 psi, 4 to 20mA DC, 4-Pin M12 Connector - Pressure Transmitters with 4-Pin M12 Connector
IFMPressure Transmitters with 4-Pin M12 Connector

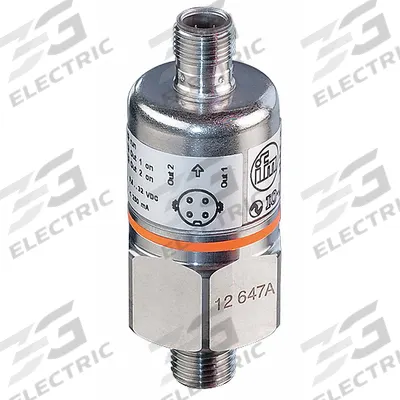

IFM Pressure Transmitter: 0 psi to 15 psi, 4 to 20mA DC, 4-Pin M12 Connector

The IFM PX3227 is a pressure transmitter with a 4-pin M12 connector, offering a 0 psi to 15 psi range and a 4 to 20mA DC output. It features an accuracy of ±0.75%, an overpressure rating of 145 psi, and a burst…

SKU 3G-OTH-176688

Brand
IFM
Item
Pressure Transmitter: 0 psi to 15 psi, 4 to 20mA DC, 4-Pin M12 Connector
Category
Pressure Transmitters with 4-Pin M12 Connector
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

IFM
Manufacturer Part Number
PX3227
Series
PX
Type
IP65
DC
4 to 20mA
Output
4 to 20mA DC
Accuracy
±0.75%
Male NPT
1/4 in
IP Rating
IP65
Overpressure
145 psi
M12 Connector
4-Pin
Burst Pressure
450 psi
Housing Material
Stainless Steel
Process Connection Type
NPT
Process Connection Gender
Male
Calibration Certificate Included
No NIST-Traceable Calibration Certificate Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

IFM Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The IFM PX3227 is a pressure transmitter with a 4-pin M12 connector, offering a 0 psi to 15 psi range and a 4 to 20mA DC output. It features an accuracy of ±0.75%, an overpressure rating of 145 psi, and a burst pressure of 450 psi. The stainless steel housing has an IP65 rating, and the process connection is a 1/4 in male NPT.

Frequently Asked Questions

What is the IFM PX3227 pressure transmitter used for?

The IFM PX3227 pressure transmitter measures pressure from 0 psi to 15 psi in industrial hydraulic or pneumatic systems. It outputs a 4 to 20mA DC signal for monitoring and control applications. The stainless steel housing and IP65 rating suit harsh environments. 3G Electric supplies this transmitter worldwide.

What are the specifications of the IFM PX3227 pressure transmitter?

The IFM PX3227 has a 0 psi to 15 psi range, 4 to 20mA DC output, ±0.75% accuracy, 145 psi overpressure, and 450 psi burst pressure. It uses a 1/4 in male NPT connection, 4-pin M12 connector, stainless steel housing, and IP65 rating. No NIST-traceable calibration certificate is included.

Where to buy the IFM PX3227 pressure transmitter worldwide?

You can source the IFM PX3227 pressure transmitter through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time. We provide this IFM transmitter to customers across industries.

How to install the IFM PX3227 pressure transmitter?

Install the IFM PX3227 by threading the 1/4 in male NPT connection into a compatible port using appropriate sealant. Connect the 4-pin M12 connector to a matching cable, ensuring correct pinout for 4 to 20mA DC output. Avoid over-torquing. Verify the IP65 seal is intact after installation.

Used in

Common applications for IFM
Automotive assembly — IFM inductive proximity sensors (e.g., IFS243) for detecting metal parts on conveyor lines
Packaging machinery — IFM photoelectric sensors (e.g., OGE282) for object presence detection in high-speed wrapping systems
Hydraulic systems — IFM pressure transmitters (e.g., PX3227) for monitoring fluid pressure in industrial presses
Material handling — IFM RFID tags (e.g., E80347) for tracking pallets and containers in warehouse logistics
Machine safety — IFM light curtains (e.g., OY009S) for finger protection on automated assembly stations
Field wiring — IFM M12 connectors (e.g., E18163) for quick sensor replacement in food processing equipment

IFM Products

3G Electric supplies IFM pressure transmitters with 4-pin m12 connector. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
