Beckett CF800 Oil Burner 3.00 to 8.00 GPH | AC Power
Beckett CF800 oil burner for commercial heating and industrial applications. AC-powered burner rated 3–8 GPH with direct spark ignition, cast aluminum construction, and biodiesel-compatible design.
SKU 3G-BKT-00026
Also listed as: 400 · 4 00 · 4-00
Local availability & support — Singapore
- Local office
- 20 Woodlands Link #09-05, Singapore 738733
- Phone
- +65 8878 8355
- Delivery
- Same-day or next-business-day delivery within Singapore for in-stock items; 7–14 days for factory-order parts from Europe.
- Payment
- Invoicing in SGD. PayNow, bank transfer, and corporate PO accepted.
- Ships to
- Singapore
Need installation or engineering help?
Ask a question
Product Description
Beckett CF800 oil burner for commercial heating and industrial applications. AC-powered burner rated 3–8 GPH with direct spark ignition, cast aluminum construction, and biodiesel-compatible design.
Frequently Asked Questions
What is the Beckett CF800 oil burner used for?
The Beckett CF800 oil burner is used for commercial heating and industrial applications, such as boilers and furnaces. It is designed for No. 1 or No. 2 heating oil and B6–B20 biodiesel blends, making it suitable for facilities requiring reliable, high-capacity combustion.
What are the specifications of the Beckett CF800 oil burner?

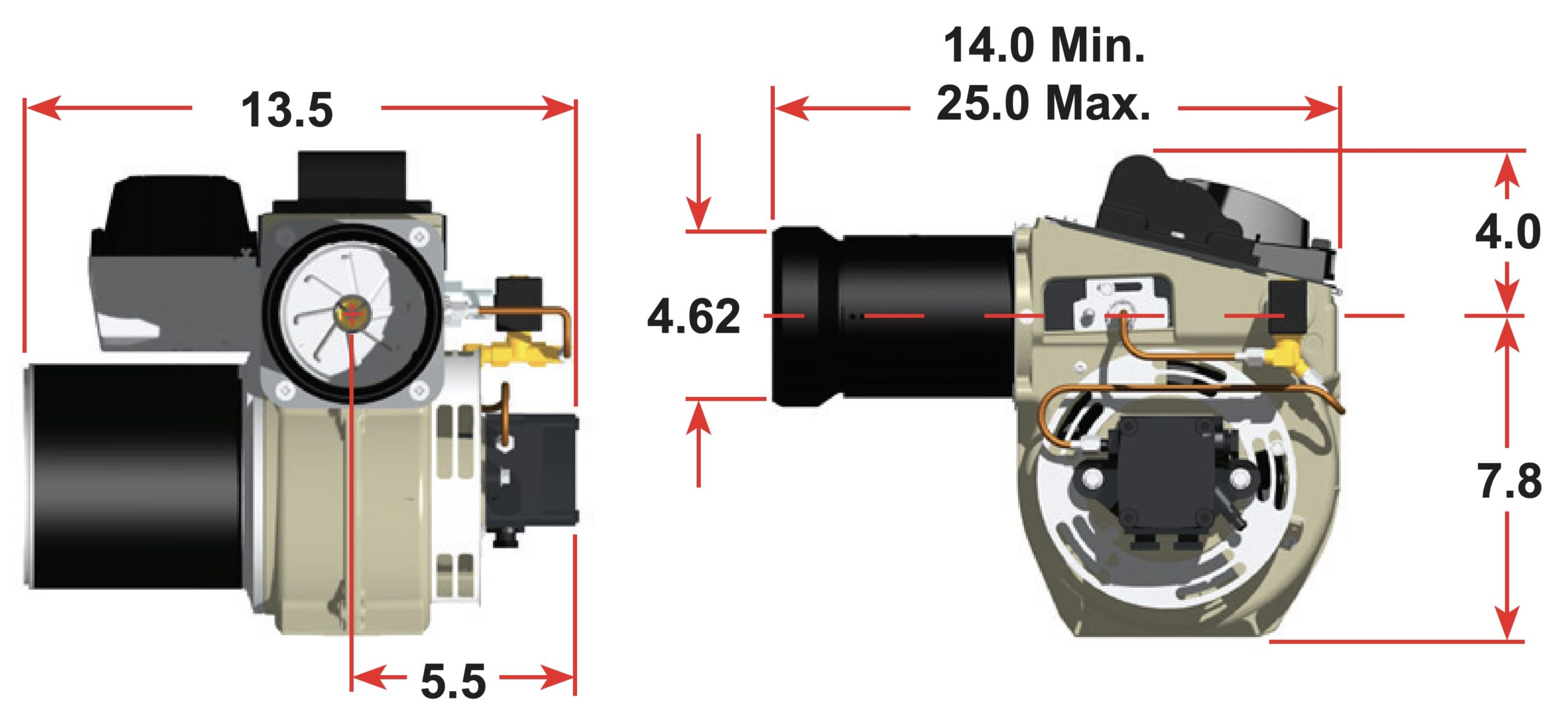

The Beckett CF800 oil burner has a firing rate of 3.00 to 8.00 GPH, a 1/3 HP 3450 rpm motor at 120/60 Hz, and a cast aluminum housing. It features direct spark ignition, a 120V/14,000V ignition transformer, and a fuel unit rated 100 to 200 psig. It is UL/cUL certified.
Where to buy the Beckett CF800 oil burner in Singapore?
You can source the Beckett CF800 oil burner through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this commercial oil burner.
How to install the Beckett CF800 oil burner?
Install the Beckett CF800 oil burner by mounting it securely to the boiler or furnace, connecting the fuel line to the 100–200 psig fuel unit, and wiring the 120 VAC motor and 14,000V ignition transformer per local codes. Always follow the manufacturer's manual and use a qualified technician.
Key Features
- 3.00–8.00 GPH fuel capacity range for flexible application sizing
- Direct spark ignition for reliable startup and consistent flame control
- 1/2 HP electric motor, 120V AC standard operation
- Cast aluminum housing reduces noise and enhances durability
- UL/cUL certified for safety and regulatory compliance
- Biodiesel blend compatible (up to B20 per D396 standard)
- Two-pipe oil flow system with integrated pump and return line
- On/Off simple control operation
- CSD-1 optional control module available
- Remote mounted control panel compatibility
