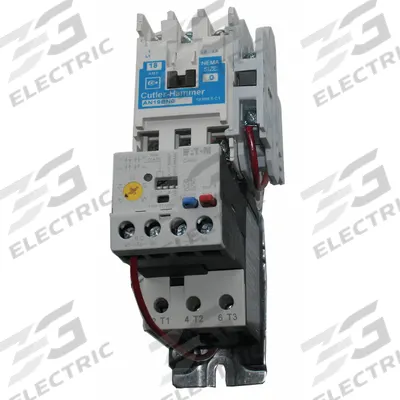

EATON Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A - Non-Reversing Starters with Electronic Overloads
EATONNon-Reversing Starters with Electronic Overloads

EATON Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 00 unit is rated for 9 A and features a 24V AC coil, a 1NO auxiliary…

SKU 3G-OTH-41039

Brand
EATON
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 00, 9 A
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AN19AN0T5E005
Type
NEMA Size 00, 9 A
Phase
Three
Poles
3
AC Coil
24V
Operator
None
Coil Voltage
24V AC
Operator Controls
None
Signaling Features
Pilot Light
Auxiliary Contact Form
1NO
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Auxiliary Contacts Included
1NO
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON NEMA Magnetic Motor Starter is a non-reversing starter with an electronic overload, designed for three-phase applications. This NEMA Size 00 unit is rated for 9 A and features a 24V AC coil, a 1NO auxiliary contact, and a pilot light for signaling. It requires no thermal units, as the electronic overload eliminates the need for them.

Frequently Asked Questions

What is the EATON NEMA Magnetic Motor Starter used for?

The EATON NEMA Magnetic Motor Starter is used to start and stop three-phase motors in industrial applications. It provides overload protection via an electronic overload, eliminating the need for thermal units. Common uses include conveyors, pumps, and compressors in manufacturing and processing facilities.

What are the specifications of the EATON NEMA Magnetic Motor Starter?

This EATON starter is a non-reversing, three-pole NEMA Size 00 unit rated for 9 A. It has a 24V AC coil, one normally open auxiliary contact, and a pilot light for signaling. The electronic overload requires no thermal units. The manufacturer part number is AN19AN0T5E005.

Where to buy the EATON NEMA Magnetic Motor Starter worldwide?

You can source the EATON NEMA Magnetic Motor Starter from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this part number AN19AN0T5E005.

How to install the EATON NEMA Magnetic Motor Starter?

Installation should follow the manufacturer's wiring diagram and local electrical codes. Mount the starter on a flat surface, connect the three-phase power and motor leads to the appropriate terminals, and wire the 24V AC coil to the control circuit. Ensure the electronic overload is set to the motor's full-load current.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON non-reversing starters with electronic overloads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
