CHAINFLEX Control Cable: 18 AWG - Continuous Flexing Control Cables
CHAINFLEXContinuous Flexing Control Cables

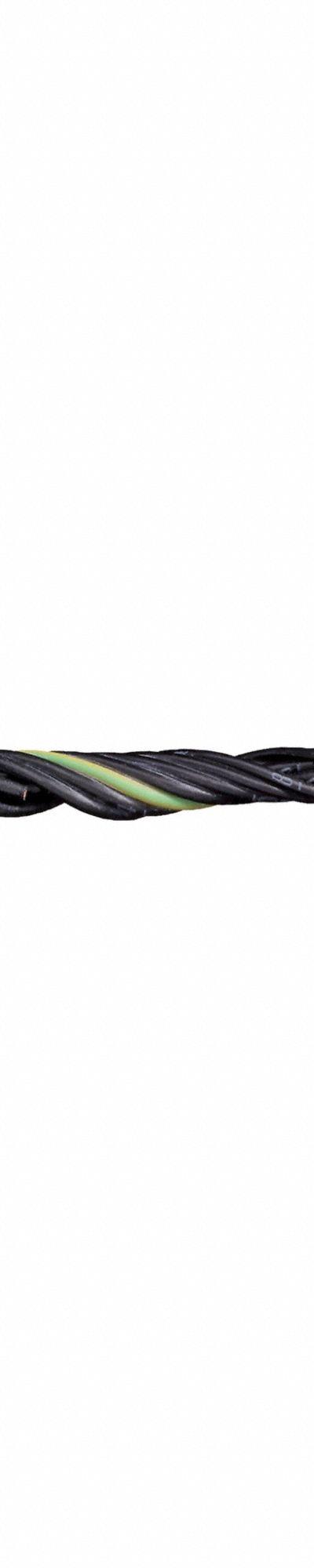

CHAINFLEX Control Cable: 18 AWG

The CHAINFLEX Control Cable: 18 AWG (SKU 801K38, MPN CF881-07-18) is a continuous flexing control cable from the Chainflex series. It features 18 conductors of 18 AWG copper wire with a single conductor…

SKU 3G-OTH-51974

Brand
CHAINFLEX
Item
Control Cable: 18 AWG
Category
Continuous Flexing Control Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Brand
CHAINFLEX
Series
Chainflex
Standards
PV 3.10.7 Status 1992
Cable Series
CF881
Product Type
Control Cable
Includes Ground
Yes
Conductor Material
Copper
Resistance Properties
Oil and Grease Resistant
Conductor Configuration
Single
Manufacturer Part Number
CF881-07-18
Minimum Bend Radius Factor - Fixed
7 x OD
Minimum Bend Radius Factor - E-Chain
12.5 x OD
Minimum Bend Radius Factor - Flexible
10 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Control Cable: 18 AWG (SKU 801K38, MPN CF881-07-18) is a continuous flexing control cable from the Chainflex series. It features 18 conductors of 18 AWG copper wire with a single conductor configuration, a PVC jacket, and a 300 V rating. The cable includes a ground conductor, is oil and grease resistant, and meets PV 3.10.7 Status 1992 standards. Minimum bend radius factors are 7 x OD for fixed installation, 10 x OD for flexible use, and 12.5 x OD for e-chain applications.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems

CHAINFLEX Products

3G Electric supplies CHAINFLEX continuous flexing control cables. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
