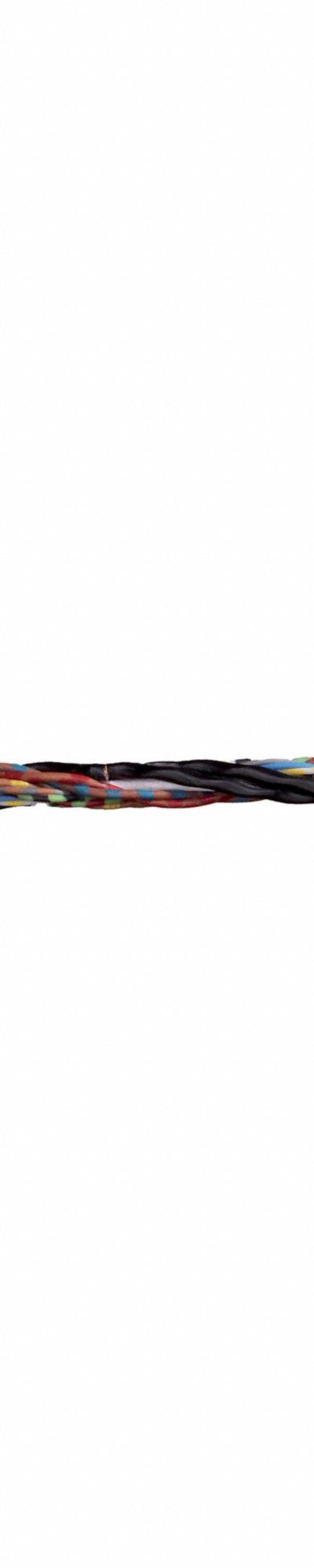

CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 26 AWG - Servo Motor Feedback Cables
CHAINFLEXServo Motor Feedback Cables

CHAINFLEX Measuring System Cable: (3) Shielded Twisted Pr 26 AWG

The CHAINFLEX Measuring System Cable (SKU 801L46, MPN CF113-032-D) is a servo motor feedback cable featuring (3) shielded twisted pair 26 AWG and (3) 26 AWG conductors, without an included ground. It is ordered by…

SKU 3G-OTH-47621

Brand
CHAINFLEX
Item
Measuring System Cable:
Category
Servo Motor Feedback Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CHAINFLEX
Brand
CHAINFLEX
Overall Length
Order by the Foot
Includes Ground
No
Conductor Grouping
(3) Shielded Twisted Pair 26 AWG/(3) 26 AWG
Manufacturer Part Number
CF113-032-D
Minimum Bend Radius Factor - Fixed
4 x OD
Minimum Bend Radius Factor - Flexible
6 x OD
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CHAINFLEX Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CHAINFLEX Measuring System Cable (SKU 801L46, MPN CF113-032-D) is a servo motor feedback cable featuring (3) shielded twisted pair 26 AWG and (3) 26 AWG conductors, without an included ground. It is ordered by the foot and has a minimum bend radius factor of 4 x OD for fixed installation and 6 x OD for flexible use.

Used in

Common applications for CHAINFLEX
Automated assembly lines — Chainflex CF10 control cables for signal transmission in cable carriers
Robotic arms — Chainflex CF280ULH servo motor cables for power and feedback in high-flex joints
Material handling conveyors — Chainflex CF78-UL control cables with PUR jacket for oil resistance
CNC machining centers — Chainflex CF9-UL control cables rated at 1,000 V for spindle and axis control
Packaging machinery — Chainflex CFBUS-PVC-021 bus cables for CAN-Bus communication in continuous motion
Automotive manufacturing — Chainflex CF2 control cables with UV-resistant PUR jacket for outdoor gantry systems

CHAINFLEX Products

3G Electric supplies CHAINFLEX servo motor feedback cables. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
