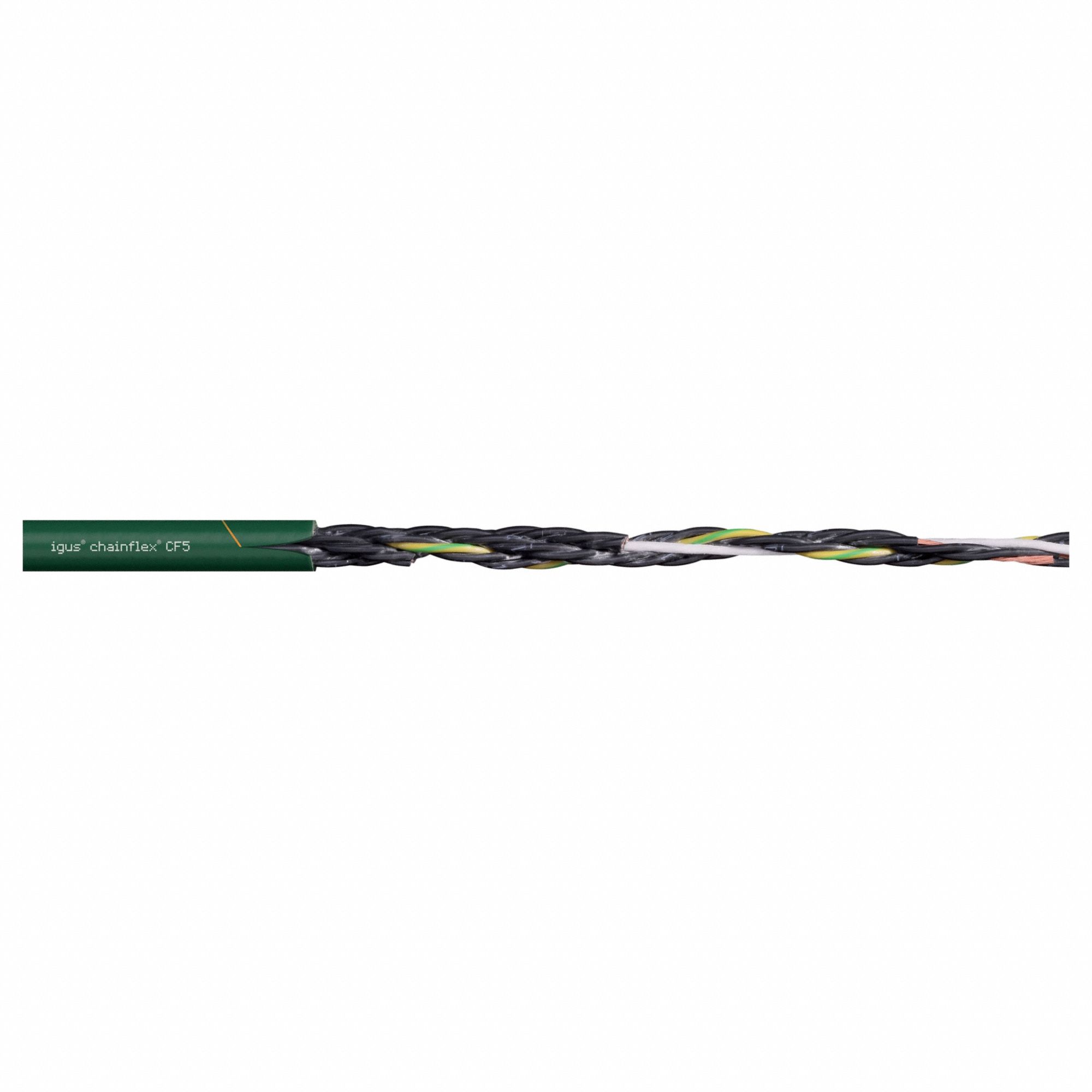

Chainflex 3G-OTH-54445 — Technical Specifications

Name: Chainflex 3G-OTH-54445 CHAINFLEX Control Cable: 24 AWG, 36 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-02-36). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: CEI 20-35.
Brand: Chainflex

The CHAINFLEX Control Cable: 24 AWG is a continuous flexing control cable from the Chainflex CF5 series, featuring 36 conductors of single copper wire with a PVC jacket rated at 600 V. It is UV/sunlight resistant and complies with CEI 20-35 standards, with minimum bend radius factors of 4 x OD for fixed installation, 5 x OD for flexible use, and 6.8 x OD for e-chain applications. This cable does not include a ground conductor and is sold by the foot.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	CEI 20-35
Cable Series	CF5
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-02-36
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
