Chainflex 3G-OTH-47128 — Technical Specifications

Name: Chainflex 3G-OTH-47128 CHAINFLEX Control Cable: 18 AWG, 4 Conductors, Order by the Foot, TPR Jacket, 300 V (MPN CF9-07-04). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 3 x OD; Minimum Bend Radius Factor - Flexible: 4 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 5 x OD; Resistance Properties: UV/Sunlight Resistant; Standards: 2011/65/EU (RoHS Compliant-II).
Brand: Chainflex

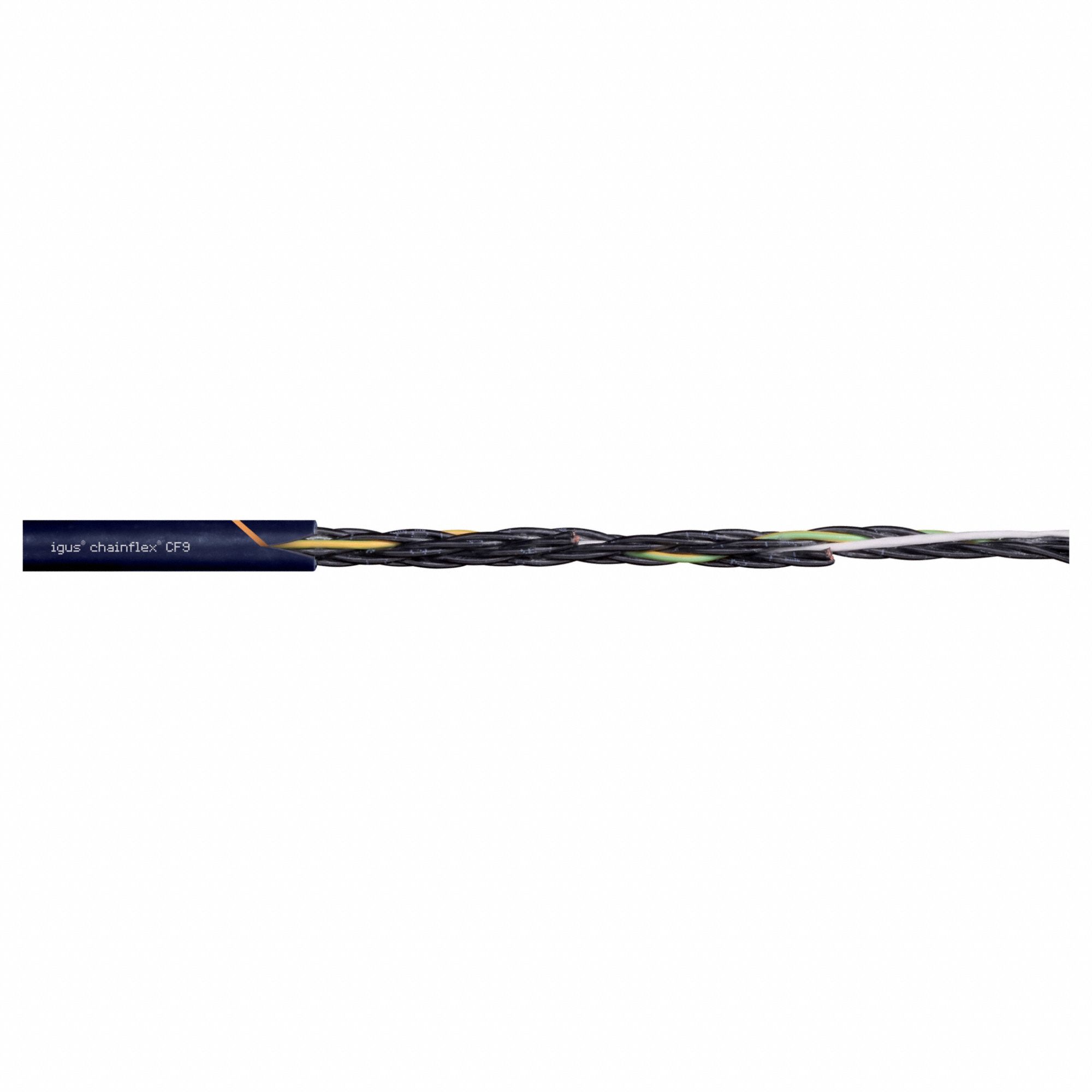

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex CF9 series, featuring 4 conductors of 18 AWG copper with a TPR jacket rated at 300 V. It includes a ground conductor, is UV/sunlight resistant, and complies with 2011/65/EU (RoHS Compliant-II). Minimum bend radius factors are 3 x OD for fixed installation, 4 x OD for flexible use, and 5 x OD for e-chain applications.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Series	Chainflex
Standards	2011/65/EU (RoHS Compliant-II)
Cable Series	CF9
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	UV/Sunlight Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF9-07-04
Minimum Bend Radius Factor - Fixed	3 x OD
Minimum Bend Radius Factor - E-Chain	5 x OD
Minimum Bend Radius Factor - Flexible	4 x OD
