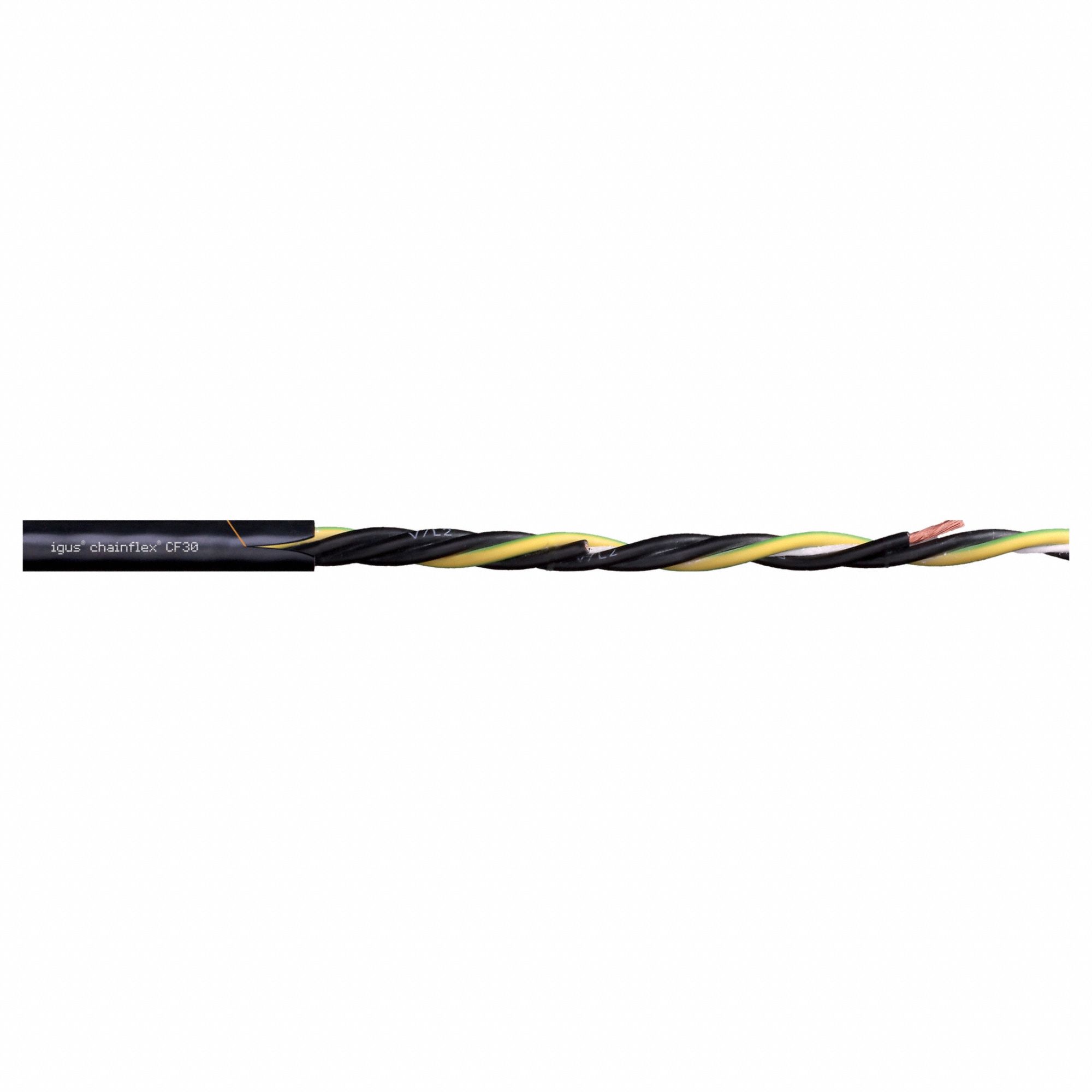

Chainflex 3G-OTH-46225 — Technical Specifications

Name: Chainflex 3G-OTH-46225 CHAINFLEX Motor Cable: 1 AWG, 4 Conductors, Order by the Foot, PVC Jacket, 1,000 V (MPN CF30-500-04). Key specifications — Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Oil and Grease Resistant; Standards: CTP C-DE.PB49.B.00420; Product Type: Motor Cable; Manufacturer Part Number: CF30-500-04.
Brand: Chainflex

The CHAINFLEX CF30-500-04 is a continuous flexing power cable for VFDs, featuring 1 AWG, 4 conductors, a PVC jacket, and a 1,000 V rating. It includes a ground conductor and is oil and grease resistant. Minimum bend radius factors are 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications. This cable complies with standard CTP C-DE.PB49.B.00420.

View Product & Quote

Technical Specifications

Parameter	Value
Brand	CHAINFLEX
Standards	CTP C-DE.PB49.B.00420
Cable Series	CF30
Product Type	Motor Cable
Includes Ground	Yes
Resistance Properties	Oil and Grease Resistant
Manufacturer Part Number	CF30-500-04
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
