Eaton 3G-OTH-36504 — Technical Specifications

Name: Eaton 3G-OTH-36504 EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NC/1NO, Metallic (MPN HT8JXH1DF1Q1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Momentary/Maintained/Momentary; Cam: 1D; DC Contact Rating: 5 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polymer; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Eaton

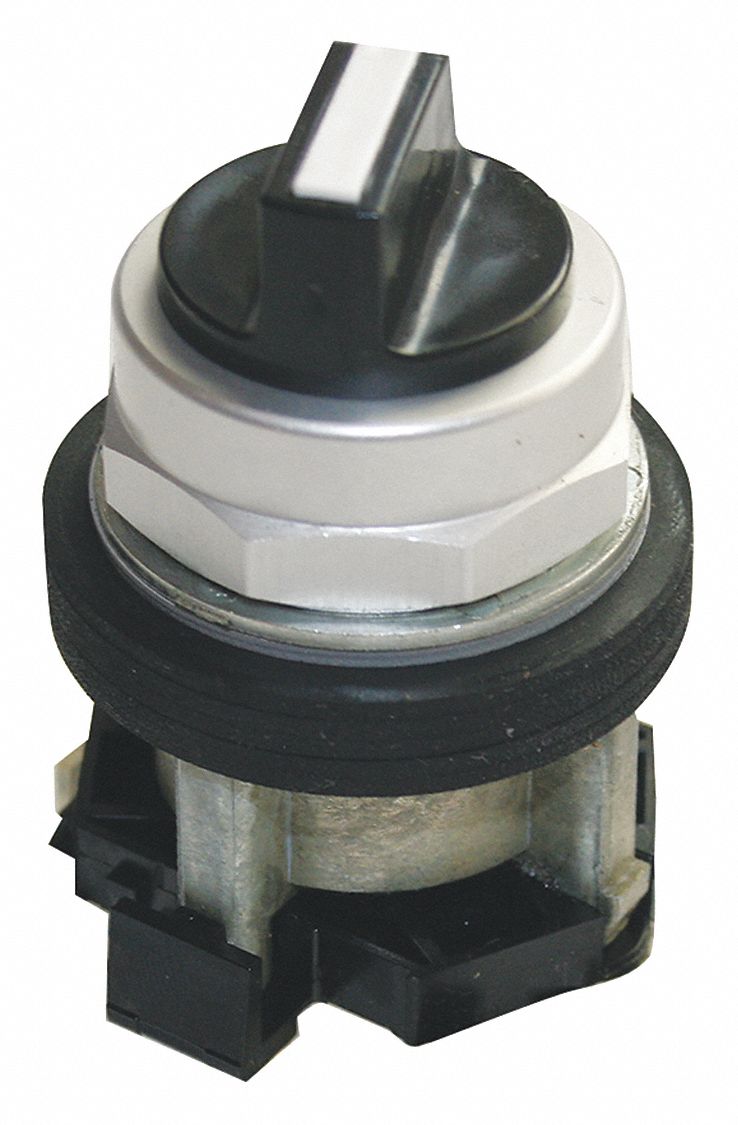

The EATON HT800 Series Selector Switch (MPN HT8JXH1DF1Q1) is a 30 mm panel-mounting, non-illuminated, short-handled knob operator with a polymer head and metallic bezel. It features a 3-position momentary/maintained/momentary action with a 1D cam, offering AC contact ratings of 10 A @ 600 V and DC contact ratings of 5 A @ 250 V. This switch is not rated for hazardous locations.

View Product & Quote

Technical Specifications

Parameter	Value
Cam	1D
Brand	EATON
Action	Momentary/Maintained/Momentary
Series	HT800
AC Contact Rating	10 A @ 600 V
DC Contact Rating	5 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polymer
Manufacturer Part Number	HT8JXH1DF1Q1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
