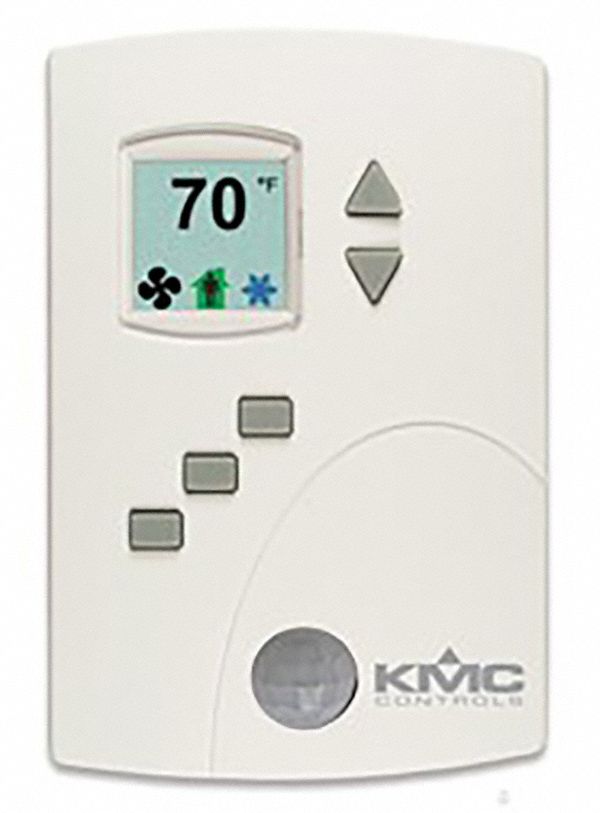

Kmc Controls 3G-OTH-71512 — Technical Specifications
The KMC CONTROLS Controller: BACnet MS/TP is a hardwired BACnet MS/TP protocol controller designed for fan coil units. It operates on 24V AC and includes an onboard occupancy sensor, a white housing, and a backplate. The controller features floating temperature adjustment and modulating fan control, with 0 relay inputs and 6 relay outputs, and does not support humidification or dehumidification control.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | KMC CONTROLS |
| Voltage | 24V AC |
| Includes | Backplate |
| Wireless | Hardwired |
| Key Features | Modulating Fan |
| Housing Color | White |
| Occupancy Sensor | Includes Onboard Occupancy Sensor |
| Compatible System Type | Fan Coil Units |
| Humidification Control | No |
| Temperature Adjustment | Floating |
| Dehumidification Control | No |
| Manufacturer Part Number | BAC-4207CW0001 |
| Number Of Relay Inputs/Outputs | 0/6 |
| Humidification/Dehumidification Control | No, No |
