Maxx Air 3G-OTH-79869 — Technical Specifications

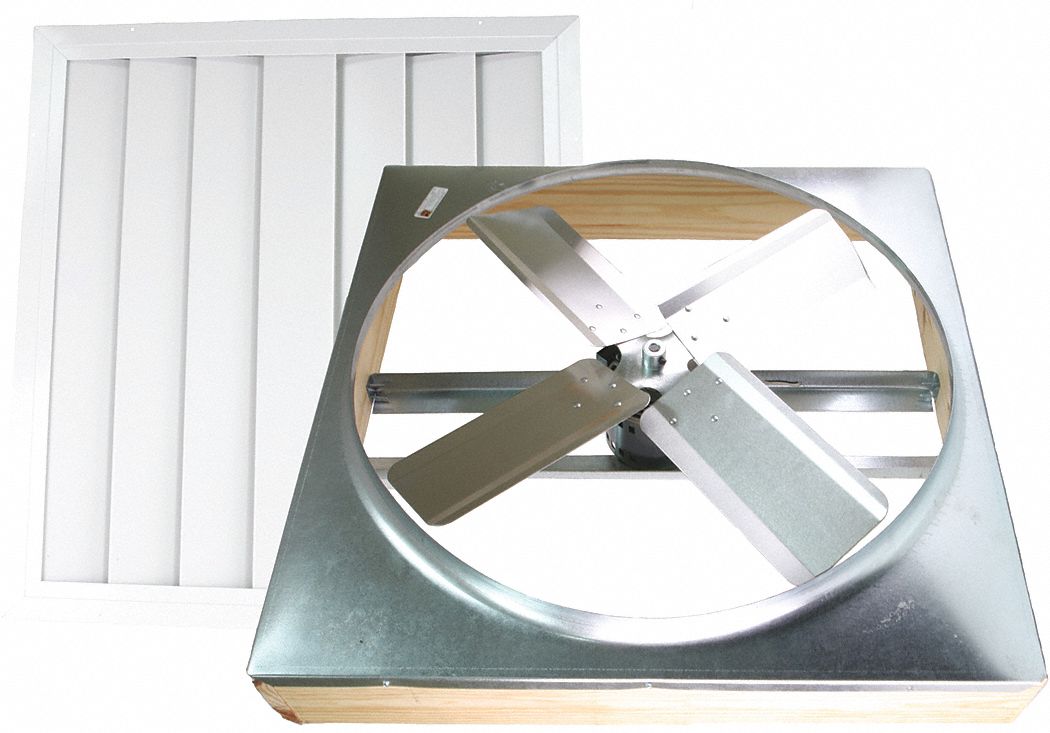

The MAXX AIR Whole House Fan: Ceiling Mount (SKU 43GL13, MPN CX302DDWT) is a ceiling-mount whole-house fan with a 30-inch blade, delivering a maximum airflow of 4,425 cfm and coverage up to 3,000 sq ft. It operates on 115V AC, single-phase (nameplate 120V AC), features two speeds, is speed controllable, and includes a quiet design. The fan has a standard-efficiency motor, a square rough opening, and is not designed for high-static-pressure applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | MAXX AIR |
| Fan Style | Whole-House |
| Quiet Design | Yes |
| Nominal Voltage | 115V AC, Single Phase |
| Number Of Speeds | 2 |
| Mounting Location | Ceiling |
| Nameplate Voltage | 120V AC |
| Rough Opening Type | Square |
| Speed Controllable | Yes |
| High-Efficiency Motor | No |
| Motor Efficiency Broad | Standard-Efficiency Motor |
| Maximum Airflow - Range | 3,000 to 4,999 cfm |
| Manufacturer Part Number | CX302DDWT |
| For High-Static Pressure Applications | No |
