Raytek 3G-OTH-180862 — Technical Specifications

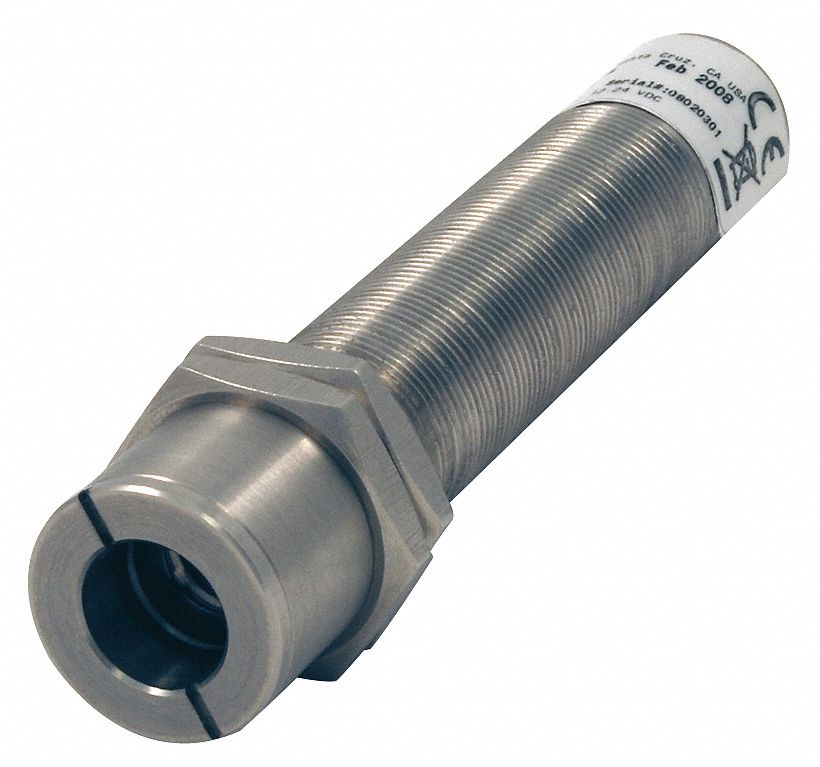

The RAYTEK Fixed Mount Infrared Temperature Sensor (SKU 5UXR7) is a CE-compliant infrared sensor with a 13:1 distance-to-spot ratio and adjustable emissivity from 0.10 to 1.10. It operates on 24V DC input, features a 3/4"-16 UNF thread, and is rated IP65 with NEMA 4 enclosure. Repeatability is ±0.5% of reading ±1°C or ±2°C (whichever is greater).
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | RAYTEK |
| Includes | Infrared Sensor |
| IP Rating | IP65 |
| Standards | CE |
| Thread Size | 3/4"-16 |
| Thread Type | UNF |
| Input Voltage | 24V DC |
| Repeatability | +/-0.5% of Reading +/-1ºC or +/-2ºC (Whichever is Greater) |
| NEMA Enclosure Rating | 4 |
| Distance To Spot Ratio | 13:1 |
| Emissivity Adjustability | Adjustable |
| Manufacturer Part Number | RAYCMLTJ |
| Maximum Emissivity Setting | 1.10 |
| Minimum Emissivity Setting | 0.10 |
